HIGHLY SPECIALISED – FOR MANY APPLICATIONS.
With its cutting depth of up to 36 mm, the SECUNORM 540 is in a field of its own. The MARTOR safety knife demonstrates its impressive strengths especially when cutting foam, polystyrene, paper rolls and bagged goods. For all its specialism, its robust and ergonomic aluminium handle is easy to hold and suitable for either hand. The proven automatic blade retraction protects you from cutting injuries.
PRODUCT FEATURES
Technical features
High safety
Safer blade change (with magnet)
Very abrasion resistant
very ergonomic
Safety lock
Cutting depth (36 mm)
For right and left handers
Lanyard hole
Printable for promotional purposes
Main cutting materials
Cardboard: up to 3-ply
Layers of foil or paper
Wrapping, stretch, and shrink foil
Foam, polystyrene
Bagged goods
Tape
Plastic strapping band
Coated film
Laminated film
PVC
Yarn,cord
Felt
Textile, material
Accessories
BELT HOLSTER S WITH CLIP NO. 9920
HOLSTER SMALL NO. 9842
USED BLADE CONTAINER NO. 9810
WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845
SAFEBOX NO. 108000
Service
Safety poster
Training video
Technical data sheet
Consulting service
Installed blade
Optional blades
DO YOU HAVE FURTHER QUESTIONS?
CONTACT FORMHIGHLY SPECIALISED – FOR MANY APPLICATIONS.
With its cutting depth of up to 36 mm, the SECUNORM 540 is in a field of its own. The MARTOR safety knife demonstrates its impressive strengths especially when cutting foam, polystyrene, paper rolls and bagged goods. For all its specialism, its robust and ergonomic aluminium handle is easy to hold and suitable for either hand. The proven automatic blade retraction protects you from cutting injuries.
PRODUCT FEATURES
Technical features
Main cutting materials
Accessories
Service
Installed blade
Optional blades
DO YOU HAVE FURTHER QUESTIONS?
CONTACT FORMALL HIGHLIGHTS AT A GLANCE.

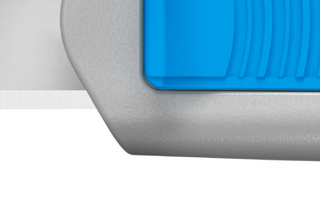

ROBUST HANDLE
The aluminium handle is already familiar from the SECUNORM PROFI40. The handle and a newly developed plastic insert form a perfect team to ensure that your SECUNORM 540 is equipped to meet even the toughest tasks.

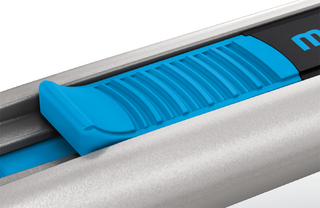

OPTIMISED SLIDER
A firm hold and grip are typical MARTOR characteristics. The SECUNORM 540 is no different. Its slider has a grooved structure and is especially large, giving the ideal conditions for comfortable, "hands-on" work – even when wearing gloves.

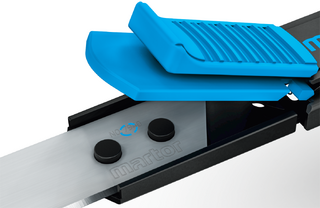

SAFE BLADE CHANGE
The blade change button gives easy access to the blade, which is also held in place by a magnet. A further practical feature is that the blade cover can be lifted and locked in an open position.

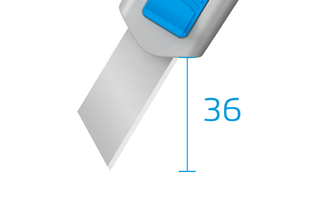

VERY LARGE CUTTING DEPTH
The extra-large cutting depth is ideal for thick materials such as foam and polystyrene, but also for tasks such as cutting paper rolls. The quality blade has an extremely low risk of breakage.
SECURE HOLD
For secure fastening, the SECUNORM 540 is equipped with a practical lanyard hole, another reason why it could become a constant companion. You then reduce risks two-fold: the risk of loss and the risk of cutting injuries.
SAFE AND EFFICIENT USAGE.
SAFETY TECHNOLOGY
Automatic blade retraction – a high degree of safety
The automatic blade retraction of the SECUNORM 540 guarantees a high degree of safety from cut injuries. As soon as you have started to cut, take your thumb off the slider. Then the blade will retract into the handle immediately after leaving the material being cut.
USAGE
YOUR CUTTING TOOL IN DETAIL.
| Product |

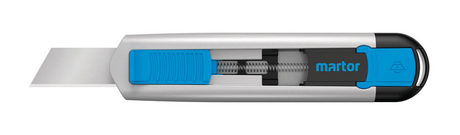

SECUNORM 540 NO. 54000410
|
| Order number | 54000410.02 |
| GTIN | 4002632801778 |
| Packaging unit | 1 in single unit box (10 knives in multipack) |
| Measurements (L x W x H) | 143 x 17 x 31 mm |
| Weight product | 79 g |
| Cutting depth | 36 mm |
| Basic material | Aluminium |
| Replacement blade Packaging unit |
STYROPOR BLADE NO. 7940 10 in transparent pack |
| GS-Certificate | 179480-7121-55094-2020 |
ACCESSORIES
| SMALL BELT HOLSTER NO. 9920 |
 |
| BELT HOLSTER XXL NO. 9924 |
 |
| HOLSTER SMALL NO. 9842 |
 |
| TOOL RETRACTOR NO. 9960 |
 |
| USED BLADE CONTAINER NO. 9810 |
|
| WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845 |
|
| SAFEBOX NO. 108000 |
|
YOUR PROMOTION KNIVES IN DETAIL.
AVAILABLE PRINTING AREAS
Room for your ideas: The blue marked surface is the area which you can use for your communication (values in mm).
Back side

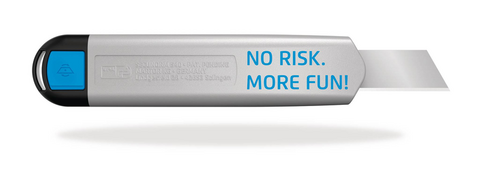

EXAMPLE
PRODUCTION DETAILS
| Order number | 54000412.92 |
| Packaging unit | 1 in single unit box (10 knives in multipack) |
| Measurements (L x W x H) | 143 x 17 x 31 mm |
| Printing process | Tampon print |
| Minimum order quantity | 100 pieces |
| Standard colours |  |
MOUNTABLE BLADES.
STYROPOR BLADE NO. 17940
Steel
non-corrosive blade
Length
71.2 mm
Width
17.7 mm
Material thickness
0.5 mm
THE RIGHT ACCESSORIES.

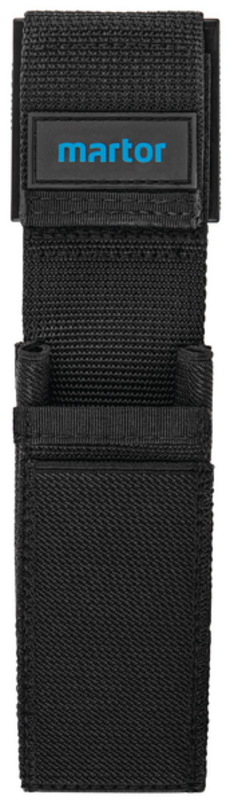

SMALL BELT HOLSTER NO. 9920
Everything always at hand: BELT HOLSTER S.
BELT HOLSTER XXL NO. 9924
Big on space. And in the possibilities.

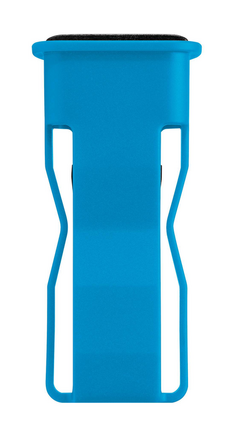

HOLSTER SMALL NO. 9842
For our more slender cutting tools.

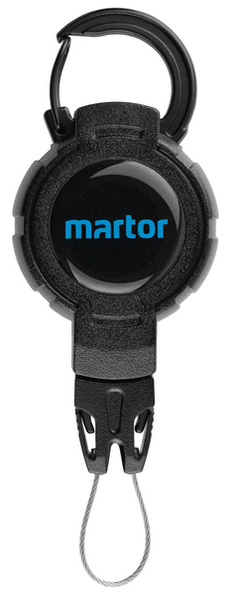

TOOL RETRACTOR NO. 9960
And your cutting tool always stays with you.
USED BLADE CONTAINER NO. 9810
For the final disposal of your blades.
WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845
Makes the USED BLADE CONTAINER accessible to all.
SAFEBOX #108000
our personal used-blade bank
