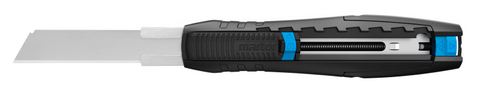

SECUBASE 383 #383001
HOW TO CUT IS UP TO YOU.
A safety knife that also performs as a cutter? The new SECUBASE 383 can be both. Your cutting tool is equipped with automatic blade retraction to prevent cutting injuries. Some cutting tasks, such as saw cuts, however, are easier with a fixed blade. The blade can therefore be locked in seven different positions to enable efficient working.
PRODUCT FEATURES
Technical features
Optional safety
Safer blade change (with magnet)
Very abrasion resistant
very ergonomic
Safety lock
Cutting depth (3-73 mm)
For right and left handers
Lanyard hole
Printable for promotional purposes
Main cutting materials
Cardboard: up to 4-ply
Layers of foil or paper
Wrapping, stretch, and shrink foil
Foam, polystyrene
Bagged goods
Tape
Plastic strapping band
Coated film
Laminated film
PVC
Felt
Fleece
Accessories
BELT HOLSTER S WITH CLIP NO. 9920
USED BLADE CONTAINER NO. 9810
WALL MOUNT BRACKET USED BLADE CONTAINER NO. 9845
Service
Safety poster
Training video
Technical data sheet
Consulting service
Installed blade
Optional blades
DO YOU HAVE FURTHER QUESTIONS?
CONTACT FORMALL HIGHLIGHTS AT A GLANCE.

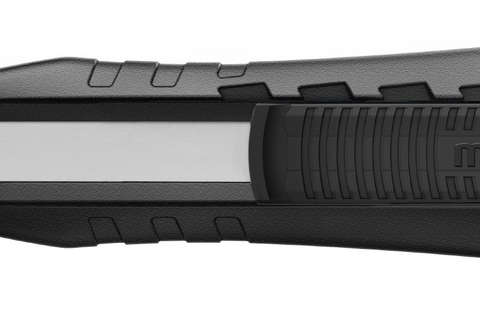

Long blade extension
"Long" is actually an understatement: the blade can extend to a maximum of 7.8 cm. The SECUBASE 383 can then be used for the safe and easy cutting of materials such as 4-ply cardboard boxes, bagged goods, paper rolls.
SECUBASE 383
NO. 383005
How to cut is up to you. With a serrated blade.
SAFE AND EFFICIENT USAGE.
SAFETY TECHNOLOGY
BLADE RETRACTION AND LOCKING – OPTIONAL SAFETY
The automatic blade retraction of the SECUBASE 383 protects you from cutting injuries. This requires that you remove your thumb from the slider after piercing the cutting material. Alternatively, you can also lock the slider and the blade. When you release the lock.
YOUR CUTTING TOOL IN DETAIL.
| Order number | 383001.02 |
| Packaging unit | 1 in single unit box (10 knives in multipack) |
| Measurements (L x W x H) | 170.5 x 25 x 34 mm |
| Weight product | 78.5 g |
| Cutting depth | 73 mm |
| Basic material | Glass fibre reinforced plastic |
| Replacement blade Packaging unit | STYROPOR BLADE NO. 79 10 in transparent pack |
Your promotion knives in detail.
Available printing areas
Room for your ideas: The blue marked surface is the area which you can use for your communication (values in mm).
Back side
Production details
(10 knives in multipack)
MOUNTABLE BLADES.
STYROPOR BLADE NO. 179
Steel
non-corrosive blade
Length
109.5 mm
Width
17.9 mm
Material thickness
0.5 mm
STYROPOR BLADE NO. 17940
Steel
non-corrosive blade
Length
71.2 mm
Width
17.7 mm
Material thickness
0.5 mm
THE RIGHT ACCESSORIES.
BELT HOLSTER S WITH CLIP
Everything always at hand: BELT HOLSTER S.
USED BLADE CONTAINER
For the final disposal of your blades.
WALL MOUNT BRACKET USED BLADE CONTAINER
The glider with a short metal base - for "push" cutting
